Core Coaxial Acoustic Architecture, Redefining a Pure Listening Experience
This product features a professional two-way coaxial driver configuration, equipped with one 15“ (Φ75mm) long-throw woofer and one 3” (Φ75mm) tweeter. The coaxial design of the high- and low-frequency drivers completely eliminates the phase distortion, sound disconnection, and scattered soundstage typically found in traditional two-way speakers. With high- and low-frequency signals originating from a single source, vocals are centered and focused with clear layering, and the sound field exhibits exceptional consistency across the entire frequency range. Whether for near-field listening or far-field coverage, it reproduces authentic, nuanced, and transparent sound quality, significantly enhancing the immersive experience of live listening.
Compact and Durable Enclosure, Suitable for Various Commercial Floor-Standing Applications
Built on a foundation of robust performance, the unit balances lightweight design with portability. The enclosure is crafted from high-strength professional-grade speaker panels, featuring a sturdy, shock-resistant structure with excellent impact and resonance resistance, effectively suppressing cabinet resonance noise to further purify sound quality. The enclosure boasts solid craftsmanship and high durability, ensuring long-term stable operation and suitability for a wide range of complex indoor and outdoor environments.

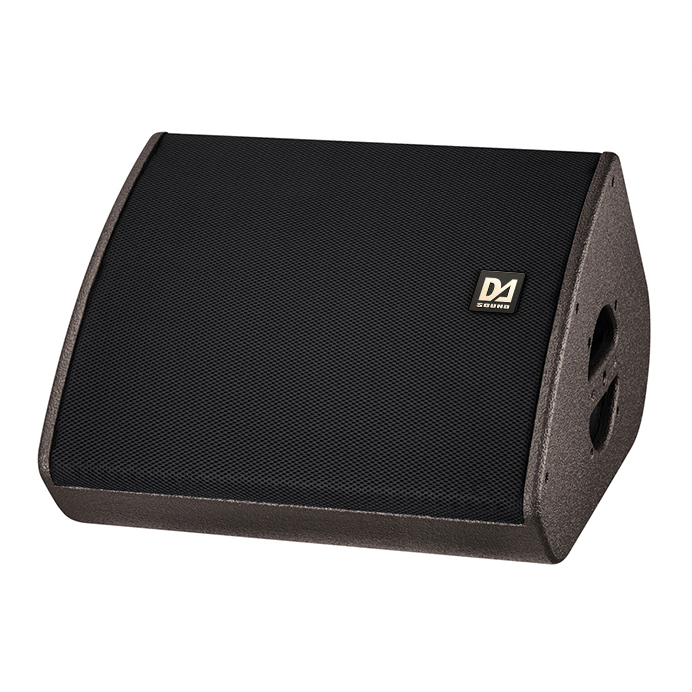

As a Monitor Speaker
Zero Phase Deviation: The 3-inch high-frequency compression driver and 15-inch low-frequency driver share the same axis, ensuring perfect alignment of sound waves. This means that no matter how you move on stage, the frequency response of the sound you hear remains consistent.
Ultimate Vocal Clarity: The coaxial design provides excellent mid-frequency coupling, allowing vocals to cut through the band’s accompaniment and enabling singers to precisely control every word.
Type:1×15"Two-way full range coaxial Speaker Frequency range: 55HZ ～ 20kHZ,
Coverage (HxV): 40°×60°
Impedance: 8Ω
Sensitivity(1W at 1m):101dB
Max SPL(1m at SPL):134dB
Power AES / peak:500W/2000W
LF:1×15" Φ 75mm
HF:1×3" Φ 75mm
Dimension(W×H×D): 496 ×341 ×500mm
Weight:21kg
Applications
With its pure sound quality, powerful sound pressure, and stable professional performance, this 15-inch coaxial full-range speaker is widely suitable for various professional sound reinforcement applications, including medium- to large-scale stage performances, corporate conference halls, lecture halls, multipurpose banquet halls, outdoor roadshows, commercial public address systems, and entertainment venues. It is a cost-effective, top-choice solution for commercial professional audio systems.
