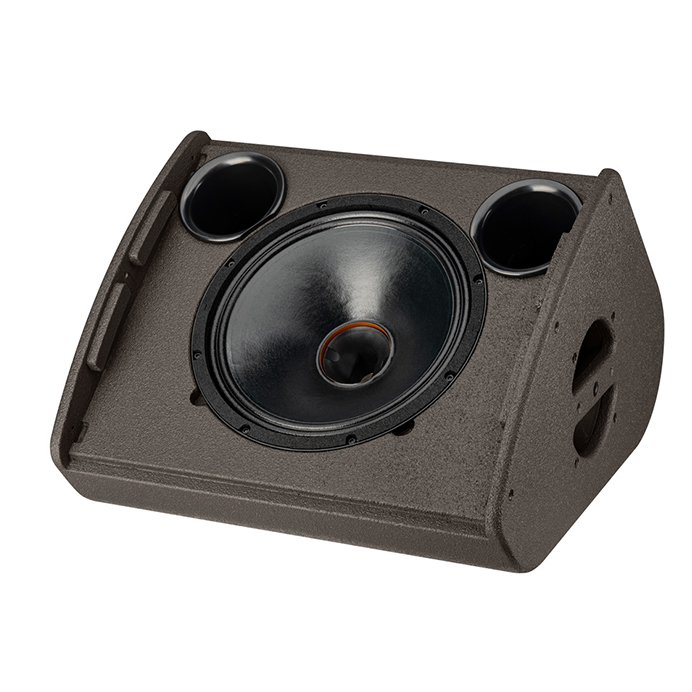

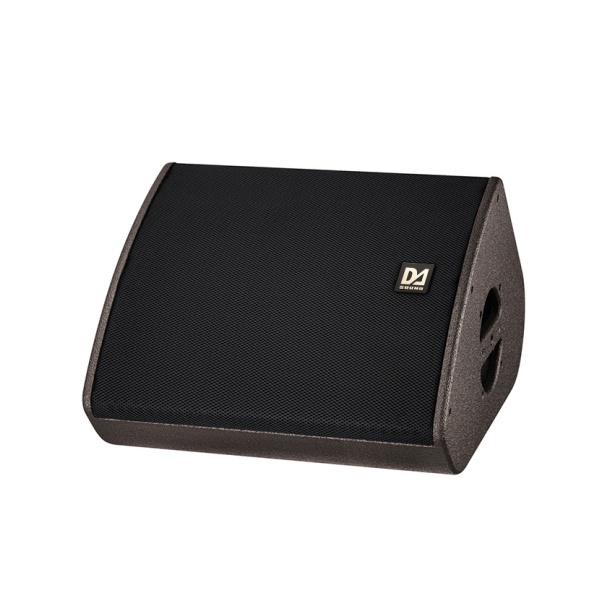

Core Coaxial Acoustic Architecture: Redefining the Pure Listening Experience
This product features a professional two-way coaxial driver configuration, equipped with one 12“ (Φ75mm) long-throw woofer and one 3” (Φ75mm) tweeter. The coaxial design of the high- and low-frequency drivers completely eliminates the phase distortion, sound disconnection, and scattered sound field typically found in traditional two-way speakers. With high- and low-frequency signals originating from a single source, vocals are centered and focused with clear layering, and the sound field exhibits exceptional consistency across the entire frequency range. Whether for near-field listening or far-field coverage, it reproduces a true-to-life, delicate, and transparent acoustic texture, significantly enhancing the immersive experience of live listening.
Compact and durable design, suitable for a wide range of commercial applications
Built on a foundation of powerful performance, the system balances lightweight design with portability. With dimensions of 495 × 429 × 489 mm, its compact size takes up minimal space, allowing a single person to easily transport, hoist, and install it. The enclosure is crafted from high-strength, professional-grade speaker cabinet material, featuring a sturdy, shock-resistant structure with excellent impact and resonance resistance, effectively suppressing cabinet resonance noise to further enhance sound quality. The unit features solid craftsmanship and high durability, ensuring long-term, stable operation and making it suitable for a wide range of complex indoor and outdoor environments.
As a monitor speaker
Zero Phase Deviation: The 3-inch high-frequency compression driver and the 12-inch low-frequency driver share the same axis, ensuring perfect alignment of the sound waves. This means that no matter how you move on stage, the frequency response of the sound you hear remains consistent.
Ultimate Vocal Clarity: The coaxial design provides excellent midrange coupling, allowing vocals to cut through the band’s accompaniment and enabling singers to deliver precise enunciation.
Type:1×12"Two-way full range coaxial Speaker
Frequency range: 59HZ ～ 20kHZ,
Coverage (HxV): 40°×60°
Impedance: 8Ω
Sensitivity(1W at 1m):100dB
Max SPL(1m at SPL):132dB
Power AES / peak:400W/1600W
LF:1×15" Φ 75mm
HF:1×3" Φ 75mm
Dimension(W×H×D): 458×486×309mm
Weight:18kg
Applications
With its pure sound quality, powerful sound pressure, and consistent professional performance, this 12-inch coaxial full-range speaker is widely suitable for various professional sound reinforcement applications, including small- and medium-sized stage performances, corporate conference halls, lecture halls, multipurpose banquet halls, outdoor roadshows, commercial public address systems, and entertainment venues. It is a cost-effective, top-choice solution for commercial professional audio systems.
