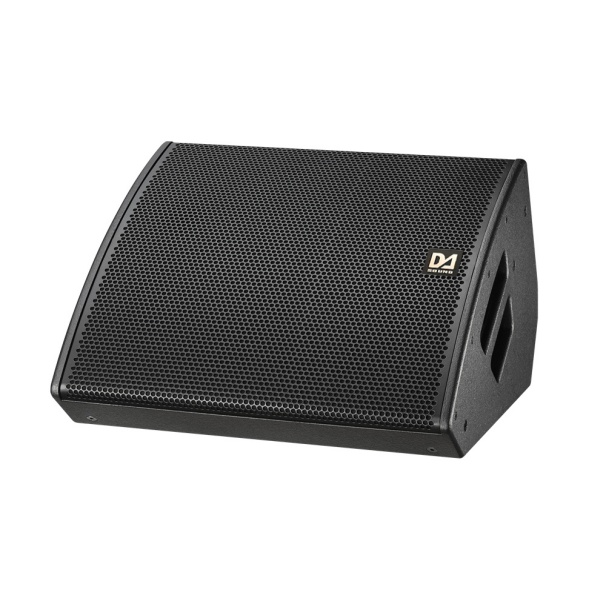

M12 12-inch Professional Stage Monitor

Stage Monitor
  • Category :
    M Series
  • Browse number : ...
  • Release time : 2026-07-25
  • Detailed Description
  • Product Drawing

Type:1x12" Two-way full range coaxial Speaker
Frequency range:50HZ ~ 20kHZ,
Coverage ( HxV ):  75°×50°
 Impedance:   8Ω
Sensitivity(1W at 1m):100dB
Max SPL(1m at SPL):132dB
Power AES / peak:450W  /1800W
LF:1×12"  Φ75mm
HF:1×3"  Φ 75mm
Dimension(W×H×D):458×486×309(mm)
Weight:18kg
